Car Paint Fisheyes and Orange Peel Causes and Repair Options

Car paint fisheyes and orange peel can both spoil a repaired panel, but they are not the same defect. Fisheyes are small craters formed when wet coating pulls away from contamination. Orange peel is uneven texture caused when sprayed coating does not atomise or level as intended.

The safe correction depends on which layer contains the defect and how much sound clear coat remains. A mild orange-peel texture may be flattened and polished after measurement. Widespread fisheyes usually require the affected coating to be removed, the contamination source eliminated and paint reapplied.

Separate the two defects by shape and reflection

Fisheyes begin with surface-tension contamination

Automotive coatings need a uniformly clean surface so the wet film can spread. Oil, wax, grease, silicone, polish residue, compressor contamination or unsuitable cleaning material can make the coating pull away into circular craters. Contamination can come from the vehicle, tools, air supply or products used elsewhere in the workshop.

A painter does not solve the process by filling each crater while contamination remains. The source is traced, the defective layer is removed to a stable boundary and the surface is cleaned using the paint-system procedure. Air lines, filters, cloths and nearby silicone products may need review.

Fisheyes are easy to confuse with solvent pop

Solvent pop creates small holes or bubbles as trapped solvent or gas escapes from the coating. Heavy application, insufficient flash time and incorrect drying conditions can contribute. Fisheyes form because the wet coating withdraws from a contaminated spot.

The timing, crater edge and layer cross-section help distinguish them. The workshop should not label every pinhole contamination, because prevention and correction differ.

Orange peel is a failure of atomisation or levelling

Orange peel appears when droplets do not flow into a smooth film before the coating sets. Incorrect gun pressure, fluid delivery, fan pattern, nozzle, spraying distance, product viscosity, reducer speed, panel temperature, coat load and flash time can all influence texture.

BESA’s technical explanation of orange-peel causes identifies equipment adjustment, viscosity, hardener and thinner choice, drying, application load and primer preparation as process variables. The applicable paint technical data remains the final guide for the system used.

Some factory texture is normal

Many original finishes contain visible texture. The repair target is usually to match the adjacent factory appearance rather than create one mirror-flat panel beside textured originals. Excessive orange peel that distorts reflection or differs clearly from surrounding panels needs review.

The technician compares the repaired panel with an unaffected area in the same light and angle. A bumper and metal panel can show different factory texture, so opposite-side comparison helps define a fair target.

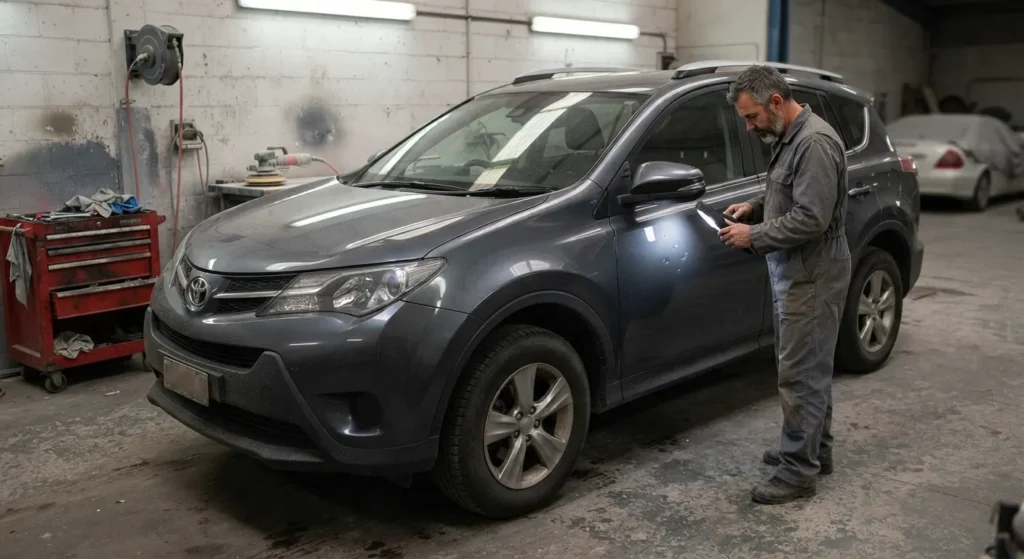

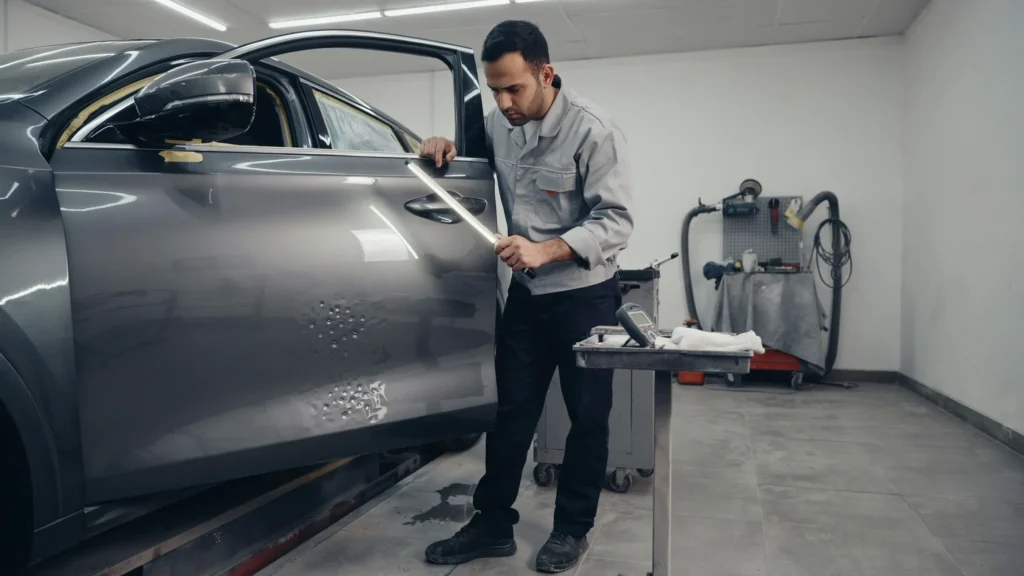

Side lighting reveals the defect more reliably

Direct overhead light can hide texture and small craters. A long reflection viewed at a shallow angle shows whether lines remain sharp or become wavy. Clean daylight, shade and controlled inspection lamps help separate colour mismatch from finish texture.

Photographs should include a reflected straight edge or inspection light rather than only a close macro image. The full panel view shows whether the defect is local, repeated or connected to a blend edge.

Film-thickness evidence controls the correction

Flattening orange peel removes clear coat from high points. The workshop needs enough sound material to level the surface while retaining protection. Previous polishing, sanding or repainting can reduce the available margin.

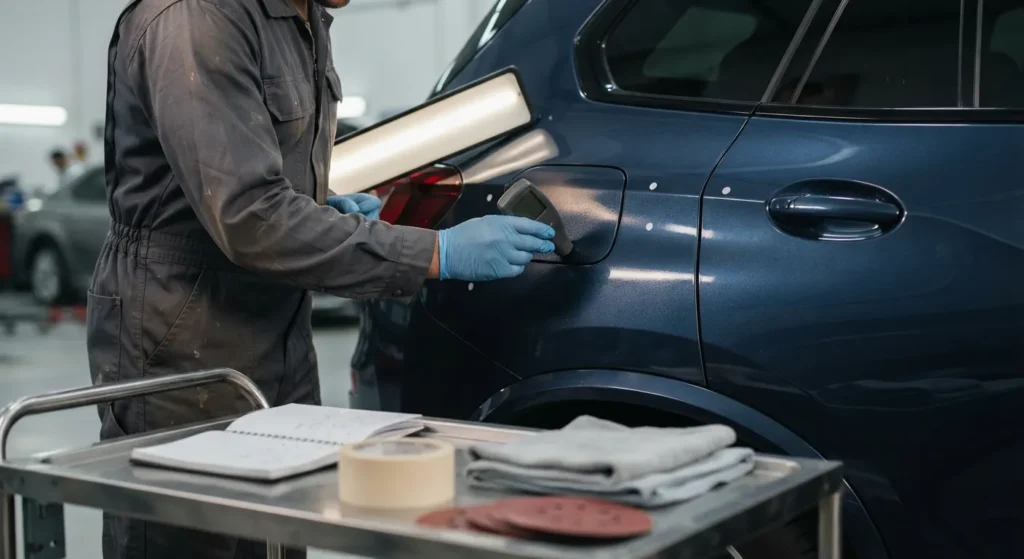

A thickness gauge can support the assessment on suitable substrates, but readings do not always isolate individual layers. Edges and styling lines are especially vulnerable. When safe correction depth is uncertain, repainting can be more reliable than aggressive sanding.

Mild orange peel may be corrected without repainting

When the defect is limited to the clear coat and sufficient thickness exists, the surface can be levelled using a controlled abrasive sequence and machine polished. The technician protects edges and checks progress under inspection lighting.

The goal is not to remove every trace of texture at any cost. It is to create a finish that matches the vehicle and retains adequate clear coat. Deep texture, thin film, colour disturbance or defects beneath the clear can require repainting.

Widespread orange peel needs process correction before respray

Repainting with the same gun setup, viscosity or reducer choice can reproduce the problem. The painter reviews the product sheet, equipment condition, air pressure at the gun, fan pattern, distance, overlap, booth temperature and flash intervals.

A test spray confirms atomisation before the vehicle panel is coated. Primer texture is corrected rather than buried. Colour and clear are applied within the complete product system.

Fisheye correction removes the contaminated layer

1. Identify whether the craters sit in primer, base colour, clear coat or a single-stage finish.
2. Trace likely contamination from the surface, cloths, air system, equipment and nearby products.
3. Sand or strip the affected coating to a stable edge.
4. Clean with compatible products and fresh materials.
5. Prepare a test area or spray-out when the process has changed.
6. Reapply primer, colour and clear coat as required.
7. Inspect for recurring craters before completing the full panel.
8. Record the cause and prevention change.

Fisheye eliminator additives are not a universal cure. They alter surface tension and may be restricted by the paint system. Using an additive without removing the contamination source can transfer the problem into future work.

Do not repaint over a weak foundation

Orange peel and fisheyes can coexist with sanding scratches, poor adhesion, moisture blistering or solvent pop. The workshop checks the entire paint stack before adding material. If the primer or old repair is unstable, the correction extends to the sound layer.

Edges, chips and previous repairs are feathered properly. Compatibility and drying are confirmed. A glossy topcoat cannot make uncured or contaminated material underneath durable.

Colour matching remains part of defect correction

Removing a defect may require new base colour, especially after sanding through clear coat or when craters reach the colour layer. The painter scans the current vehicle, selects a variant and validates it with a spray-out.

The paint colour mismatch guide explains face, side-tone and lighting checks. The computerised colour-matching guide covers measurement, formula selection and spray-out verification.

Dubai conditions make process control more visible

High ambient heat affects panel temperature, product choice and solvent behaviour. Workshop temperature and humidity are managed according to the paint system rather than guessed from outdoor conditions. Dust control matters because contamination can create separate nibs and defects.

Strong sunlight reveals texture, haze and metallic inconsistency. Final inspection should therefore include outdoor light after the finish is cured and clean.

Root-cause review prevents the same defect returning

The workshop reviews preparation materials, cleaning sequence, air supply, spray gun maintenance, product batch, mixing record, booth conditions and flash times. A defect on one small panel may trace to local contamination; repeated defects across jobs suggest a process source.

The correction file records what changed before respray. This may include replacing a contaminated hose, servicing filters, separating silicone products, changing reducer speed or correcting gun pressure. Without that step, sanding the panel only resets the surface for the same failure.

Choose the smallest correction that remains technically complete

One isolated dust nib may need only controlled de-nibbing and polishing. Mild uniform orange peel may allow measured flattening. Deep texture, colour disturbance or thin clear coat moves the decision toward repainting. Fisheyes that reach base colour require removal and reapplication of the affected layers.

The smallest visible area is not always the smallest correct paint area. Preparation, colour blending and clear-coat boundaries need room. The quote explains why a complete panel or adjacent blend is included instead of hiding the extension inside a lump sum.

Edges and body lines carry the greatest correction risk

Clear coat is naturally harder to measure at sharp edges and can be thinner after previous polishing. Technicians reduce pressure and protect those zones during sanding. A burn-through at an edge forces colour repair and can enlarge the job.

Body lines also distort reflected inspection lights. The panel is viewed from several positions so a normal styling break is not mistaken for orange peel and a genuine texture ridge is not overlooked.

Aftercare should not contaminate fresh paint

The owner follows the workshop’s curing guidance before applying wax, polish, ceramic coating or paint-protection film. Silicone-rich dressings and sprays are kept away from fresh repair edges. Washing uses clean materials rather than a cloth carrying tyre or interior dressing.

If a crater or texture difference appears after collection, photograph it before polishing. The workshop can then distinguish a process defect from later contamination, chips or abrasive damage and review the repair while evidence remains clear.

A professional correction quote names the affected layer

• Defect identification and panel area.
• Existing paint and previous repair condition.
• Film-thickness or correction-depth assessment.
• Sanding and polishing only or repainting.
• Panels receiving colour and clear coat.
• Blend requirements for metallic or pearl finishes.
• Removal of trims, sensors and handles.
• Materials, curing and final inspection.
• Warranty limits and aftercare.

Use the BodyShop.AE car painting service when the defect needs controlled refinishing. Pricing depends on the affected layer, panel, finish, previous paint and whether safe correction is possible without repainting.

Inspect the corrected finish as a system

• Reflections remain consistent across the repaired and adjacent areas.
• Texture matches the vehicle rather than becoming an isolated mirror patch.
• No craters, pinholes, dust clusters or sanding marks remain.
• Colour and metallic effect match from more than one angle.
• Edges and styling lines show no burn-through.
• Trims and sensors are refitted cleanly.
• No overspray appears on glass, rubber or neighbouring panels.
• The invoice states whether the panel was polished, cleared or repainted.

Preventing recurrence is part of the repair

For fisheyes, prevention means contamination control across the car, materials, air supply and booth. For orange peel, it means correct product selection, mixing, equipment setup, application and drying. The final surface is evidence of the entire process.

Bring low-angle photographs and the original repair invoice if available. BodyShop.AE can determine whether the defect is correction-ready, needs repainting or points to a deeper paint-system failure.

Use a defect map before sanding begins

The inspector marks every crater, texture zone, dry edge, dust concentration and polishing mark under consistent light. The map records whether defects repeat at panel edges, across several panels or only near one repair. This pattern can reveal gun movement, contamination direction or a local preparation issue.

Photographs are taken before wax, polish or abrasive work changes the evidence. A clean masking marker or digital annotation is safer than scratching circles into the finish. The planned correction area is compared with the defect map so isolated faults are not missed after the panel is levelled.

Primer texture can print through the topcoat

A rough or poorly sanded primer foundation can remain visible through base colour and clear coat. Adding wetter clear may increase gloss without removing the underlying shape. The painter checks the defect through the layer stack and rebuilds the foundation when necessary.

Sanding scratches and feather-edge swelling can also distort reflection. They require the correct abrasive progression, primer surfacer and drying rather than a polishing-only response.

Panel removal and trim handling affect defect risk

Handles, mouldings, lamps and badges are removed when masking them would create dry edges or contamination traps. Clips and one-time seals are identified in the quotation. Careless removal after painting can chip a sound finish and create a separate warranty issue.

When a bumper is painted off the car, it is supported in the orientation and shape intended by the procedure. Flexing a fresh coating during installation can crack edges or expose weak preparation around clips and tabs.

Correction quality is judged after curing

A wet panel can look smooth before solvents leave and the film settles. Inspection waits for the required curing condition, then checks texture, gloss, colour and defects under clean light. Polishing too early can mask texture temporarily or disturb a soft coating.

The final check includes adjacent panels because one excessively flat correction can look as mismatched as the original orange peel. The goal is a durable, clean finish that belongs on the vehicle, not the lowest possible texture reading.

A paint-defect warranty needs a defined inspection

Report recurring craters, texture, peeling or haze before polishing or coating the panel. The workshop checks whether the issue returns from the original process, another underlying layer or later contamination. The warranty discussion should identify the corrected panel and operation rather than promise every finish on the vehicle.

Keep the invoice, formula record and handover photographs. Clear evidence helps the workshop act quickly and prevents a later chip, scratch or chemical mark from being confused with the original defect.

Inspect again after the first normal wash, following the workshop’s curing guidance, and report any change before abrasive correction.
