Lower-body shape, door openings and safe lift points

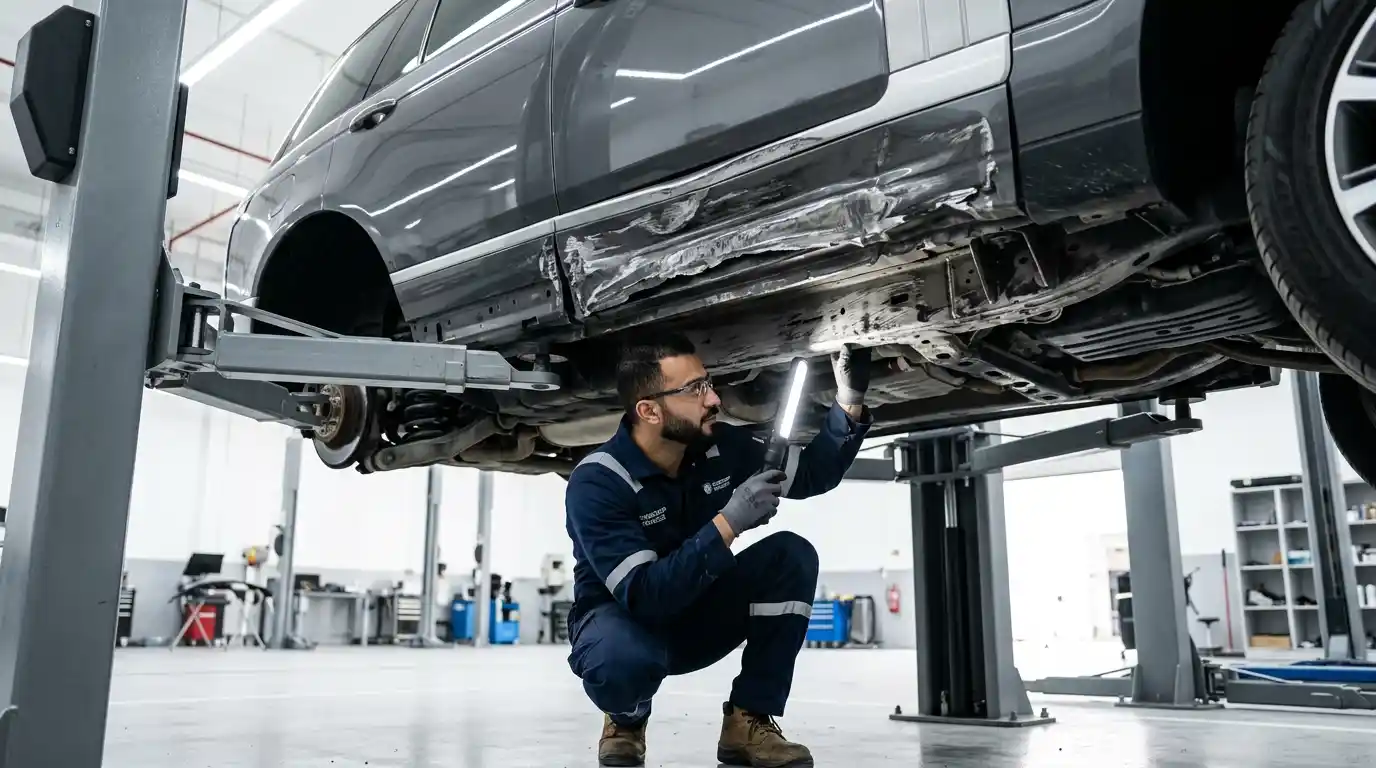

Rocker Panel Repair Dubai
A rocker panel sits low, collects kerb and side-impact damage, and can influence more than appearance. We inspect the visible outer sill, door gaps, jacking or lift areas, coatings and adjoining structure before choosing cosmetic correction, metal repair or a wider collision scope.
Read the complete lower side

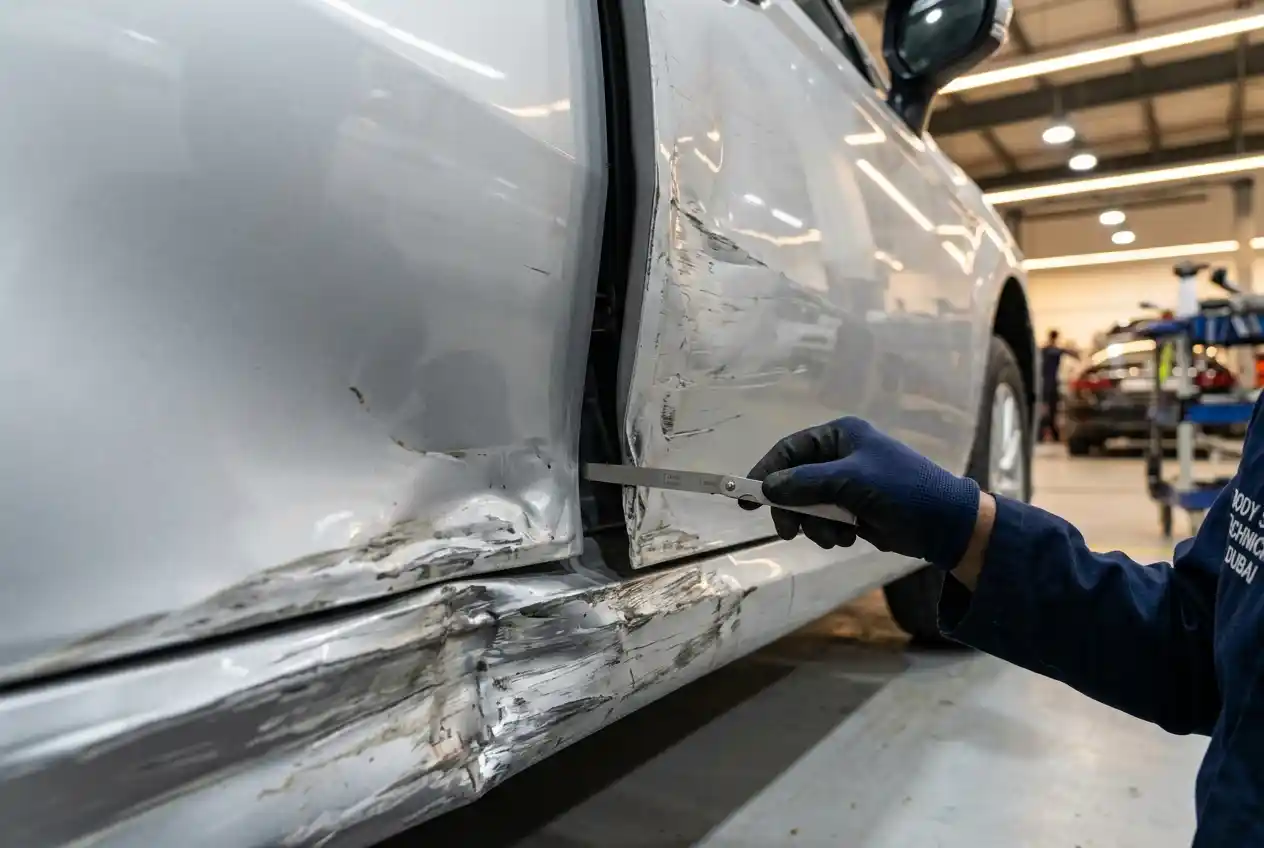

A rocker-panel dent is not judged from its depth alone
The rocker panel runs below the doors and forms the visible lower edge of the vehicle side. Depending on the design, the outer surface may cover or connect with reinforced inner sections, door openings, pillar bases and prescribed lift points. A shallow scrape on an outer cover is a different problem from a sharply crushed sill after a side impact.
Inspection starts with the complete side profile, both door openings, lower mouldings, seam or pinch-weld condition and accessible underbody relationships. We look for tapering door gaps, contact marks, cracked seam sealer, disturbed coatings and evidence that a lifting point has been folded or misused.
Meaningful side-impact damage may require the broader geometry and construction checks provided through our accident repair service. A cosmetic estimate should not conceal a separate structural concern.
Four-zone lower-body map

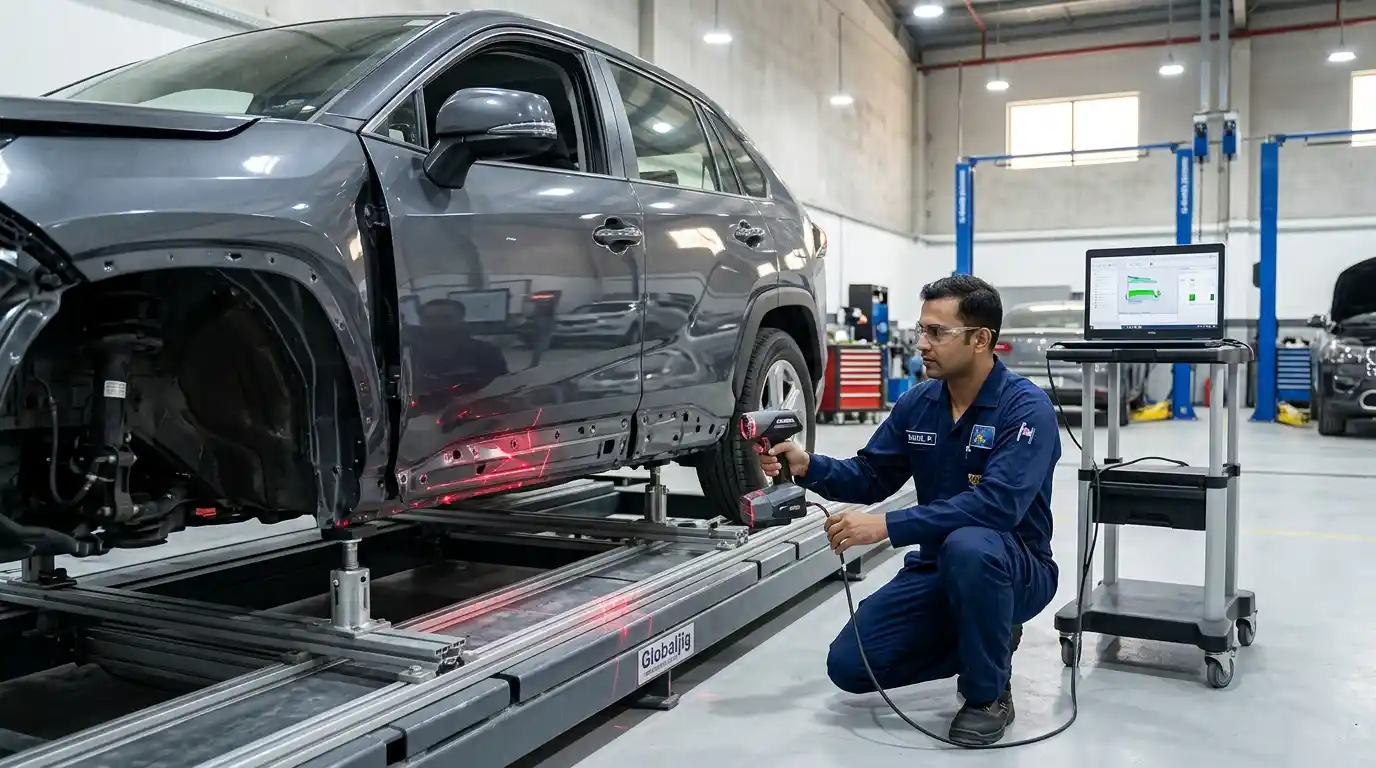

The repair path follows where the impact travelled
The same visible crease can mean different things depending on its relationship with openings, seams and protected inner areas.
Outer sill skin
Scrapes, shallow dents and local creases can sometimes remain an outer-panel repair when gaps, seams and inner relationships are stable.
Door opening
A changed gap, edge contact or latch behaviour can indicate that the impact should not be treated as isolated paint damage.
Lift and seam area
Pinch welds, marked jacking points, seam sealer and underbody coating require careful inspection before lifting or straightening.
Inner reinforcement
A severe crush, pillar-base involvement or evidence inside the opening can move the job into vehicle-specific structural planning.
Preserve sound construction

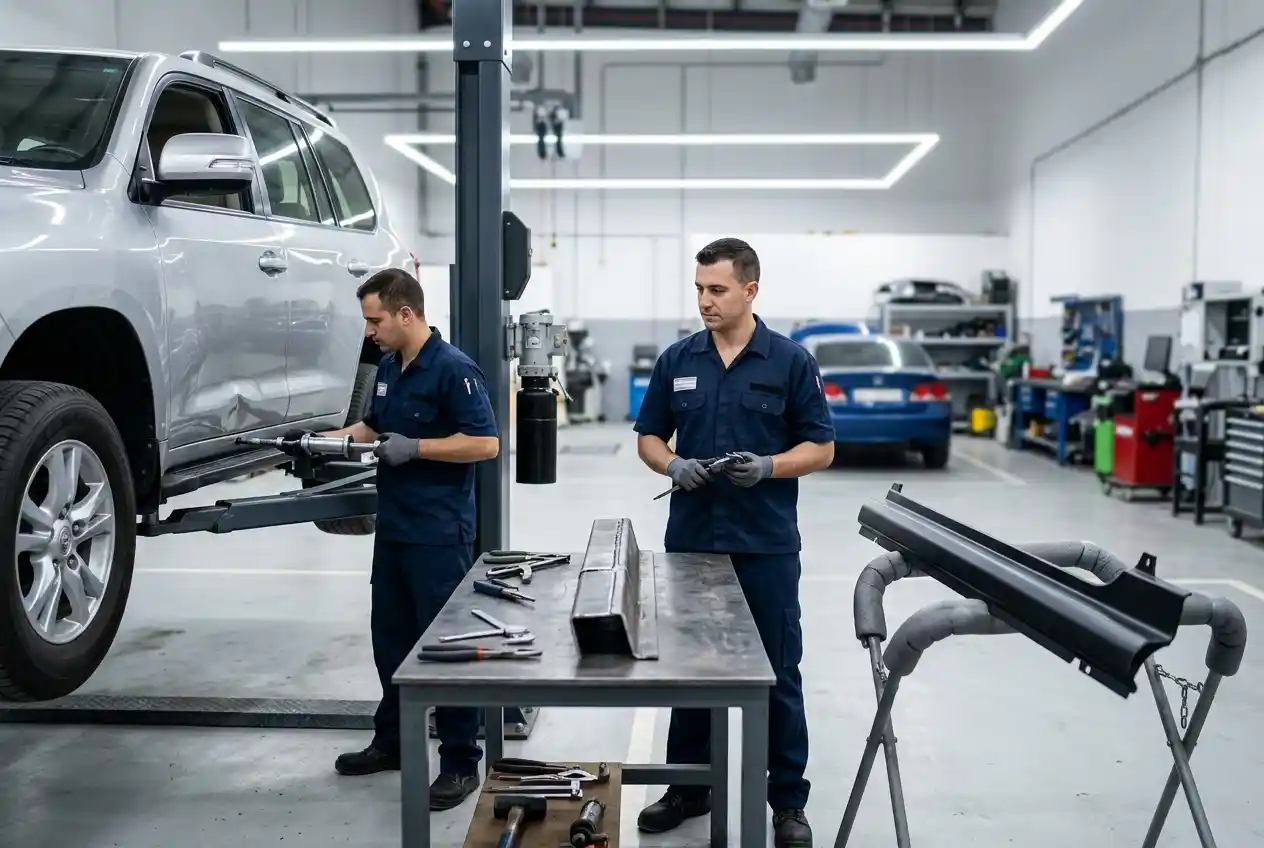

Cosmetic repair, section repair or replacement planning
The least invasive safe method is preferred, but the decision must respect access, material, construction and corrosion protection.
Suitable local dent or scrape
For limited outer damage with stable door relationships, the method may involve controlled metal correction, finishing and refinishing.
- Confirm material and access
- Protect the lower seam
- Control filler thickness
Crease, crushed edge or compound shape
A sharper impact can require more access, pulling strategy and verification across the door opening and lower side.
- Measure before force
- Work from stable reference areas
- Recheck gaps during correction
Severe or inner-area involvement
Tearing, extensive crush, pillar-base concerns or prescribed sectioning needs vehicle-specific repair information and a documented plan.
- Identify joints and materials
- Restore corrosion protection
- Record structural checks
Send the complete side view
Show the opening, not only the dent
A full side photograph and both adjacent door gaps make the first assessment more useful.
Indicative Dubai planning bands
How much does rocker panel repair cost in Dubai?
Cost depends on impact depth, material, door-opening involvement, access, previous repair, coating damage and whether inner construction is affected. These bands are planning guidance, not a photograph-based quotation.
Door, pillar, floor, underbody, wheel-alignment and structural operations are separate when affected. Compare wider collision planning with our Dubai accident repair cost guide.
Controlled lower-side sequence

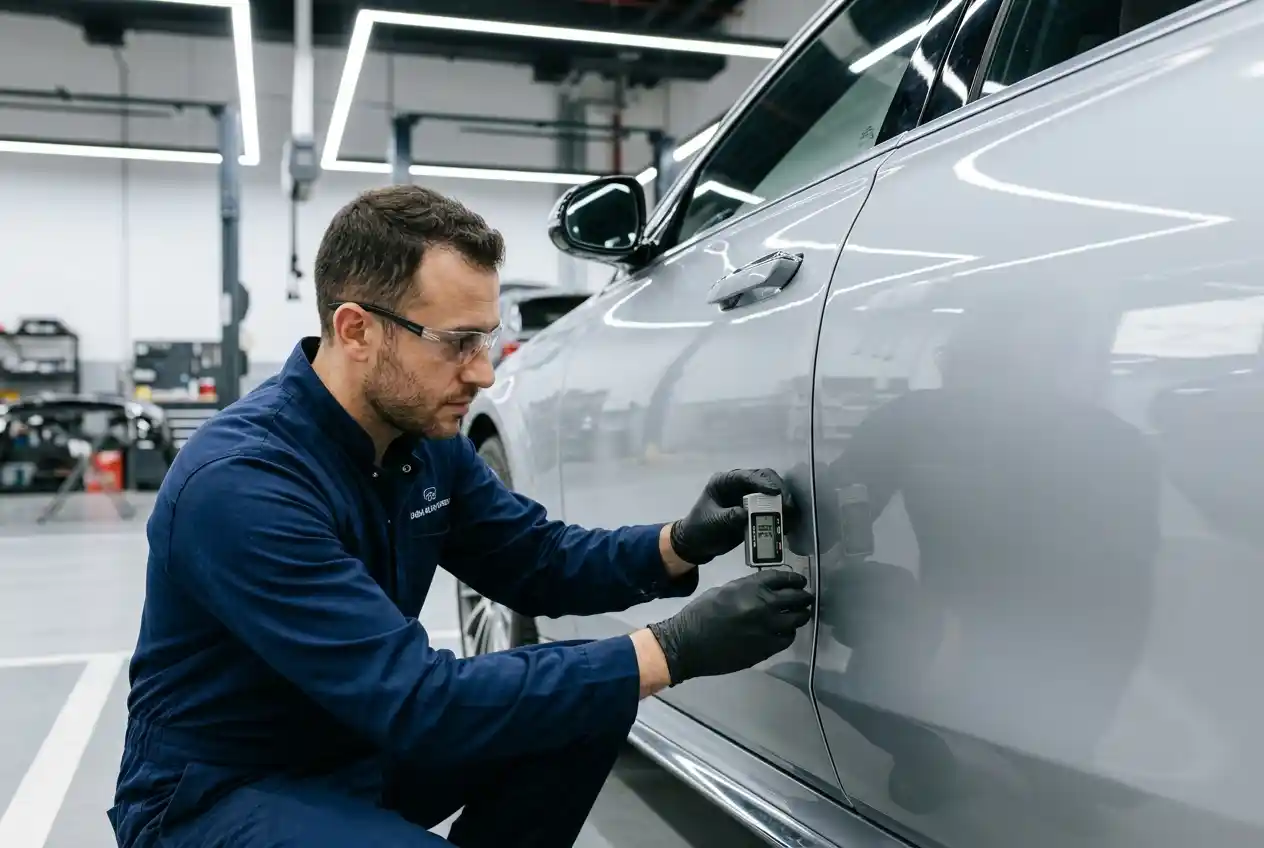

Shape, openings and protection are checked together
Repair does not proceed as a blind pull on the deepest point.
Record
Photograph the side, door gaps, sill profile, seam and existing underbody marks before disturbance.
Classify
Separate outer cosmetic damage from opening, lift-point, pillar-base or inner-section concerns.
Plan access
Identify trim, doors, seals or underbody items that may need protected access or removal.
Restore shape
Correct crowns and creases progressively while monitoring the long lower-body line and gaps.
Refinish
Prepare sound substrate, rebuild protective layers and apply the selected paint system.
Verify
Review door operation, gaps, seam protection, lift-area condition, finish and disturbed fasteners.
Durability below the doors

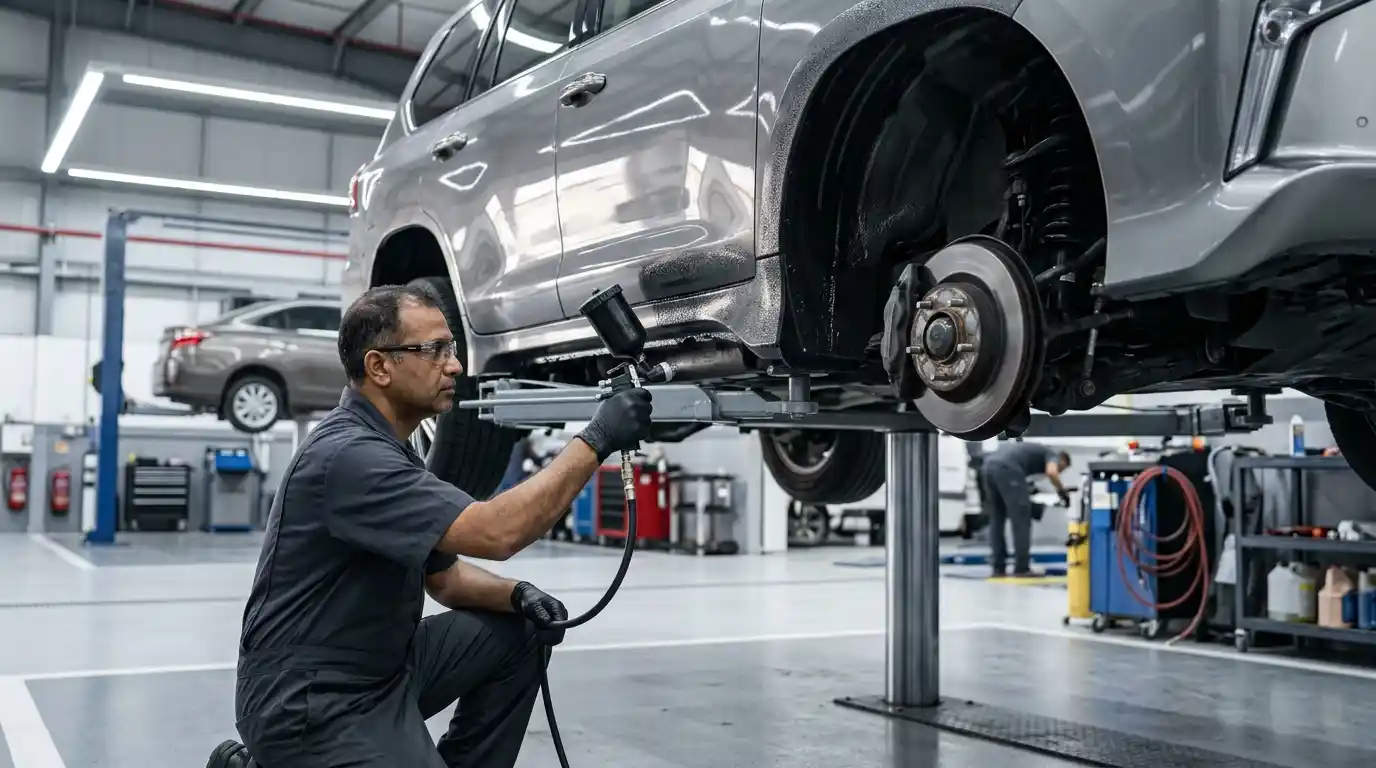

Finish quality includes corrosion and underbody protection
Metal and protective layers
The lower side is exposed to water, grit, road contamination and lifting forces. Bare steel, repaired seams and disturbed cavities require suitable protection within the documented repair system.
A smooth painted face is not enough if the reverse side, seam sealer or stone-chip coating was disturbed and left incomplete.
Handover relationships
Both adjoining doors should open and close normally, gaps should read consistently for the vehicle, and the repaired sill should follow the long lower-side line without a sharp wave.
Where the incident involved a substantial side load, body repair should not be presented as a substitute for separate wheel, suspension or alignment checks supported by evidence. Our article on collision frame repair decisions explains the wider distinction.
Common owner questions
Rocker panel repair FAQs
Can a dented rocker panel be repaired?
Often, yes. Repairability depends on depth, stretch, material, access, seam condition, door-opening relationships and whether inner construction is affected.
Is the rocker panel structural?
Construction varies. The visible outer sill may connect with reinforced inner areas, so a severe crush should be assessed with vehicle-specific construction in mind.
How much does rocker panel repair cost in Dubai?
Suitable local outer repairs may plan around AED 600 to AED 1,500. Deeper or wider work can range from AED 1,200 to AED 8,000 or more after inspection.
Can paintless dent repair work on a rocker panel?
It may suit limited accessible damage when paint is intact and the metal is not badly stretched. Restricted access and reinforced areas often limit suitability.
Should I use the damaged sill as a jacking point?
No. Avoid lifting from a crushed or uncertain area until the marked lift point and surrounding condition have been inspected.
Will the doors need to be removed?
Not always. Removal or adjustment depends on access, opening condition, repair method and the need to protect or verify adjacent parts.
Can rocker-panel rust be repaired?
The corrosion extent and remaining sound metal must be established. Surface staining, perforation and hidden seam corrosion require different scopes.
Does a crushed sill mean the chassis is bent?
Not automatically. It is a reason to inspect the impact path and related geometry rather than making a conclusion from the outer dent alone.
Can photographs provide a final quote?
Photographs help triage but cannot confirm inner construction, metal stretch, reverse-side corrosion or final access. Physical inspection is required.
What should be checked at handover?
Review lower-side shape, door operation and gaps, seam and underbody protection, finish, trim and any separately agreed geometry checks.
Start with a safe lower-body inspection
Arrange rocker panel repair assessment in Dubai
We will inspect the outer sill, openings, seam, lift areas and accessible adjoining construction, then explain the repair scope and current quotation.
